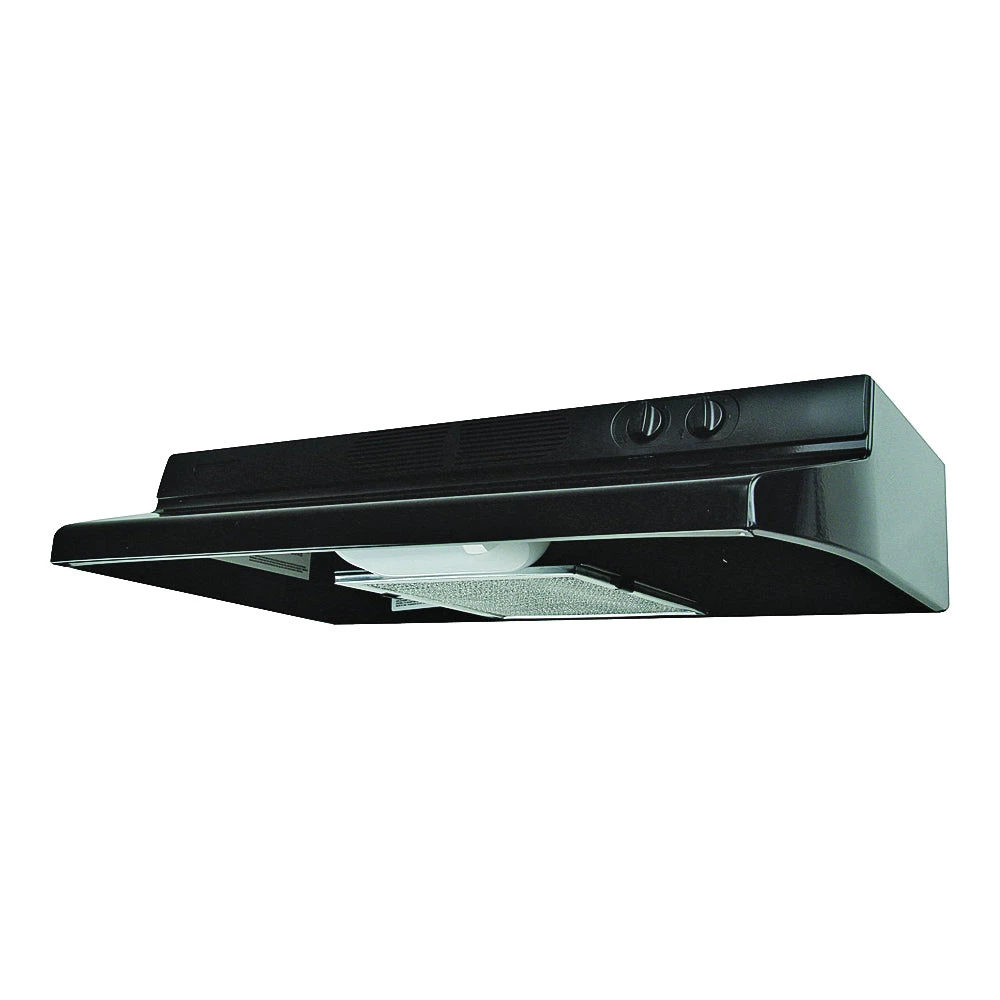

Air King Quiet Zone QZ Series QZ2306 Range Hood, 200 Cfm, 30 In W, 12 In D, 6 In H, Steel, Black(Air King Quiet Zone Qz Qz2306 Range Hood 200 Cfm 30 In W 12 In D 6 In H Steel Black)

Streamline body height, stylized grill, with a quiet running motor and infinite speed control. Mitered front allows cabinets on side of hood to open fully. 60 W maximum cook top light with two brightness settings (bulb not included). Comes equipped for 3-1/4 in x 10 in vertical or horizontal ducting, (duct adapter and damper included). Can be converted to ductless operation with the addition of a charcoal odor filter, Quiet Zone Series model CF-06, (not included) or to a 7 in round, for vertical ducting, with the addition of model E-22A collar and damper, (not included). 260 cfm, 6 Sones/Vertical. 250 cfm, 5.5 Sones/Horizontal. Uses a 9 in axial fan blade, which is similar in appearance to a paddle style fan, but incorporates an outer ring around the blades. This gives it increased performance with a low sound level. UL listed. HVI 2100 certified. Uses #GF-06 filter. Dimensions of 30 in W x 6 in H.

Product Details

Manufacturer: AIR KING VENTILATION PRODUCTS

Manufacturer’s Part Number: QZ2306

Show me more Under-Cabinet Range Hoods

Product Features

• Infinite speed motor control

Product Specifications

Color	Black
Depth	12 in
Duct Size	3-1/4 x 10 in
Filter Type	Grease
Flow Rate	200 cfm
Height	6 in
Includes	Light Lens, Mounting Screws
Light Type	CFL, Incandescent
Material	Steel
Operating Frequency	60 Hz
Sones	5.5 Horizontal, 6 Vertical
Voltage Rating	115/120 V
Wattage Rating	67 W
Width	30 in

Product Documents

Catalog	Click here to download
Specification Sheet	Click here to download
Instruction/Installation Manual	Click here to download
